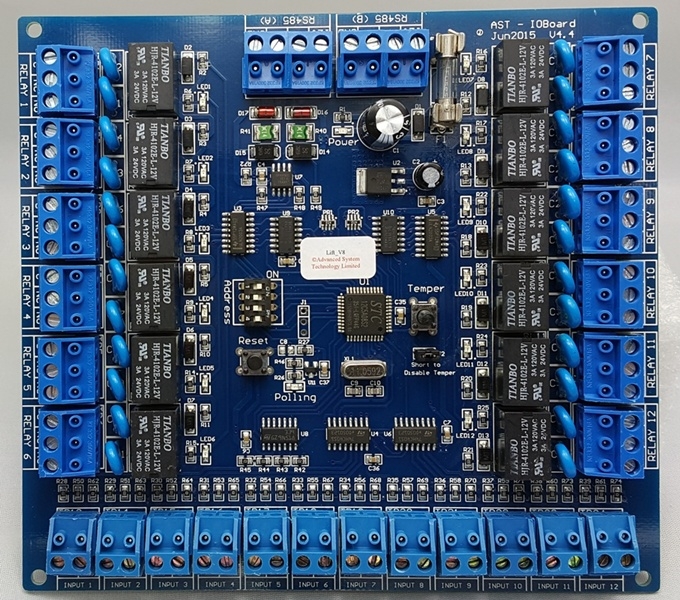

iMS - 12 Zone I/O Board (AST-CT51/CT53)

iMS - 12 Zone I/O Board is an interface unit that provides Alarm Monitoring or Lift Control System. The I/O Board provides address selection to allow linking up to 8 Interface Boards in the same RS485 Network. It can provide up to 96 Inputs and Outputs Control in the same node. Each output provides LED indication for easy monitoring and the RS485 port provides Surge and Lightning Protection.

Download Catalogue



Features :

Support Supervisor Mode Input
Support 12 Alarm Input Point
Support 12 Dry Contact Output Point
Selectable address
LED Indication
Surge and Lightning Protection



Specification :

Usage
Function : AST-CT51 : Alarm Monitoring
AST-CT53 : Lift Control

Interface
Input : 12 Input Points
Output : 12 Output Point (NC and NO Selectable)

Communication
485 Interface : 9600bps (8,n,1) up to 1.2km

General
Power : 12V / 500mA(Max)
Working Environment : -10℃ to 50℃ 10% to 90% RH
Dimensions : 250mm x 210mm x 65mm (Metal Enclosure) 152mm x 137mm x 30mm (Board Size)
