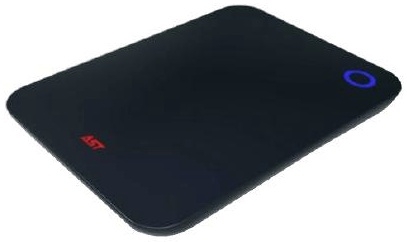

AST - USB Smart Card Reader (AST- R22) |
| |
USB Smart Card Reader is a desktop smart card reader which adopts the widely recognized ISO14443 technology. It provides high reliability, fast response time and low power consumption for a wide range smart card application development. The reader has built in bi-color LED and Buzzer to provide visible and audio indication for users. The USB connection support most operation system including Linux, Windows performs (WinXP, Win8, Win10 and etc) and MAC PC. |
| |
|
|
|
|
|
| |
 |
| |
|
Features : |
|
| |
 |
HID Driver Interface
|
|
Support keyboard emulation mode
|
|
Build in Bi-Color LED and Buzzer
|
|
Support ISO14443 Type A,B,C Smart Card
|
|
Up to 5cm Reading Range
|
|
Provide Dual SAMs Slot
|
|
|
|
|
|
| |
|
| |
| Specification : |
|
| |
|
Card Interface |
| Operate Frequency : |
ISO 14443 Type A,B,C , 13.56MHz |
| Card Type : |
Mifare Light, Mifare Series, Mifare Plus Series, Desfire, Felica and etc |
| Read Range : |
Up to 5cm |
Communication |
| USB Port : |
USB2.0 |
General |
| Power : |
USB Port (5V / 150mA) |
| Working Environment : |
-10℃ to 50℃ 10% to 90% RH |
| Color : |
Black |
| Dimensions : |
102mm x 82mm x 15mm |
|
|
|
|
|
| |
|
|
|
|
